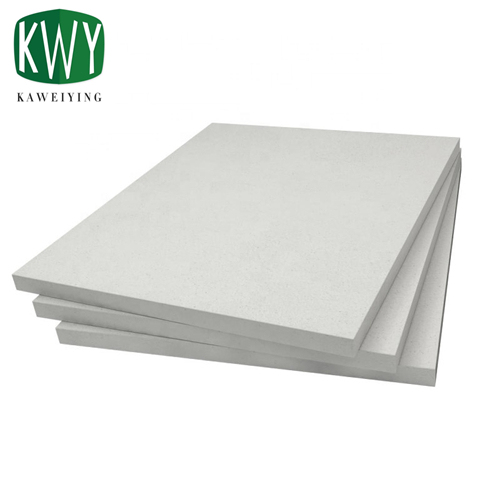

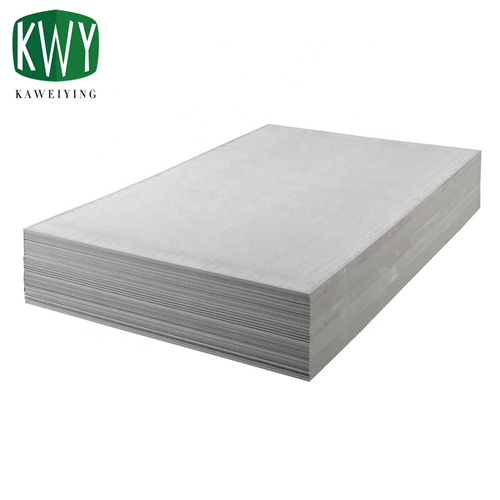

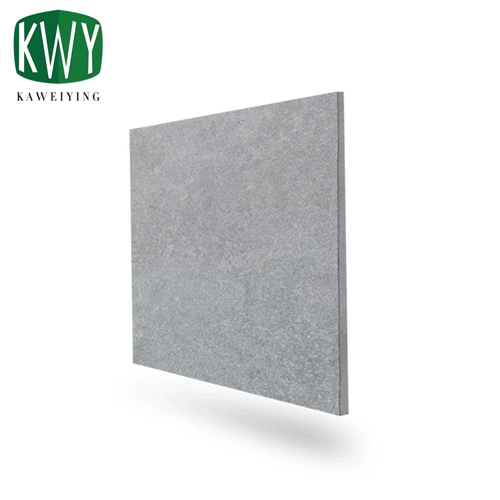

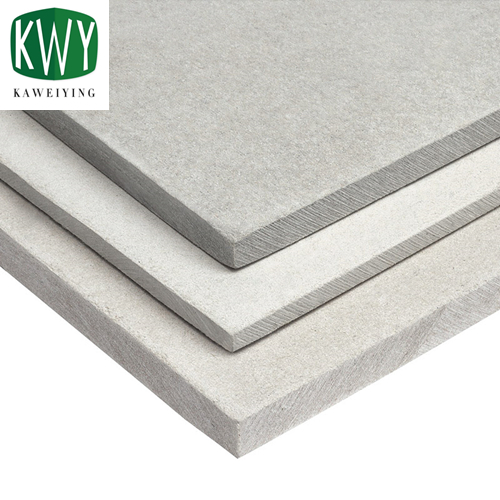

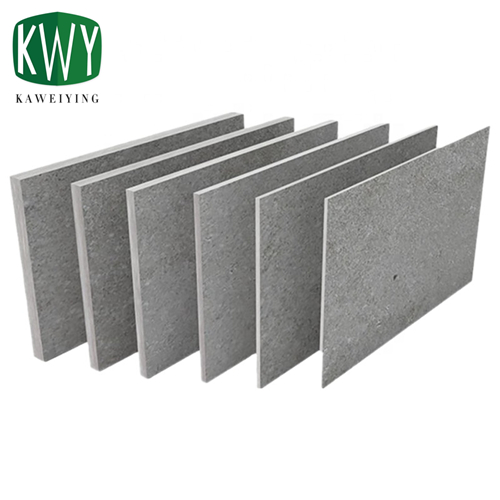

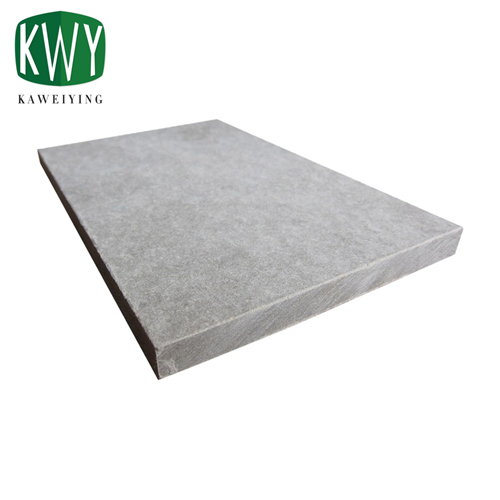

Fiber Cement Board Wall Board
Product description:
Fiber cement is a composite material made of sand, cement, and cellulose fibers.
Fiber cement board, (fiber cement siding or fiber cement cladding in the UK and Australia) is a building material used to cover the exterior of a building in both commercial and domestic applications.

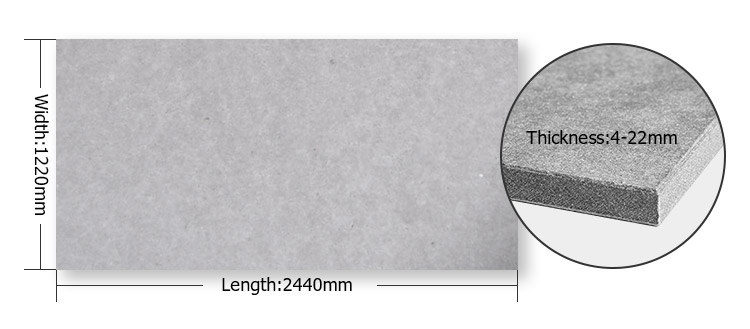

It is a composite material made of quartz sand, cement, and cellulose fibers. This product adopts imported pure paper pule from Canada, not including waste paper pulp. Fiber cement board is manufactured in sheet form and are used for interior and exterior suspension, partition, and flooring application. The normal size is 1220×2440mm, thickness from 4.5~20mm, and density is 1.3~1.6g/cm3. There are low-density, middle-density, and high-density.

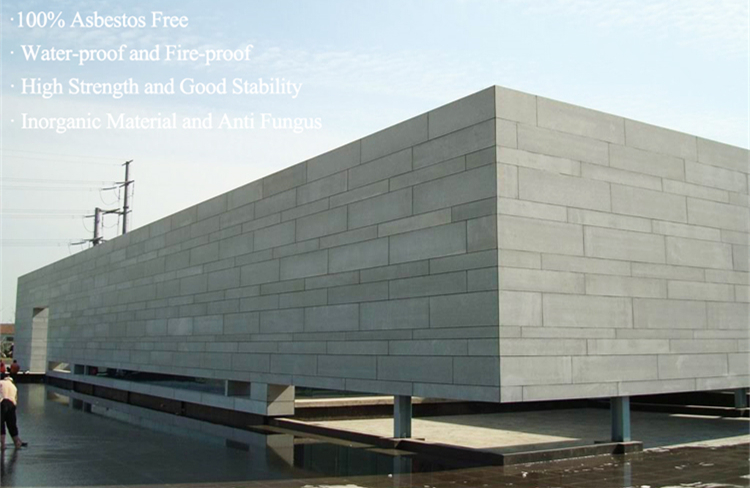

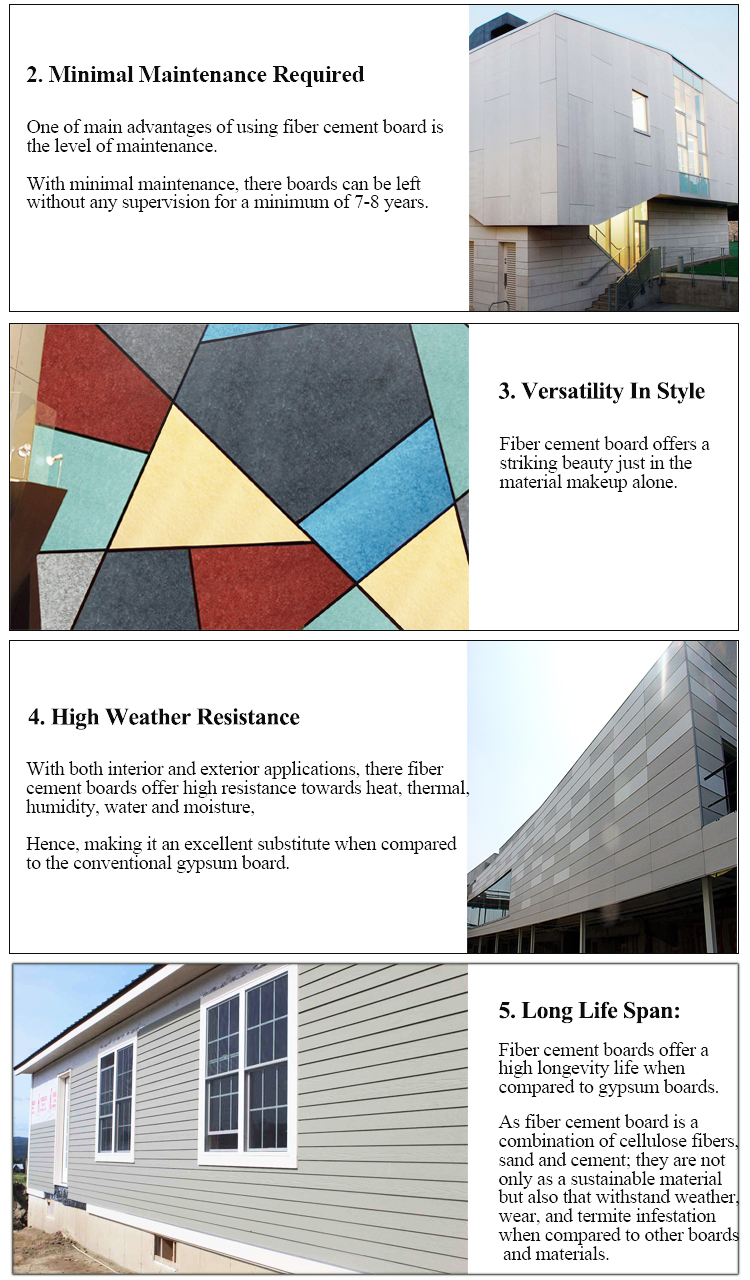

Main Characteristic:
1. 100% Asbestos Free
2. Excellent Fire Resistant
3. Excellent Moisture / Water-Resistant
4. Good Heat and Sound Insulation
5. High Strength
6. Stable Dimensions
7. Durability and long service life

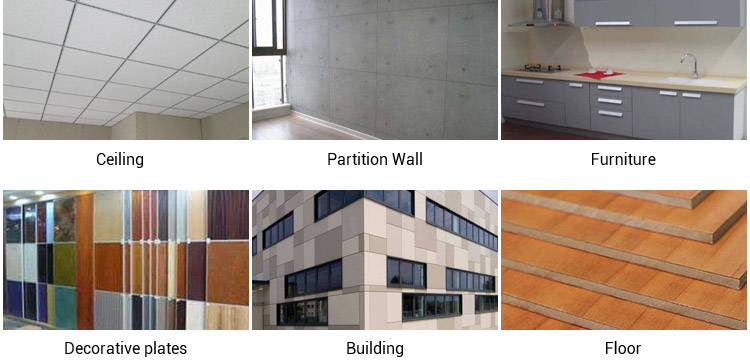

Application:

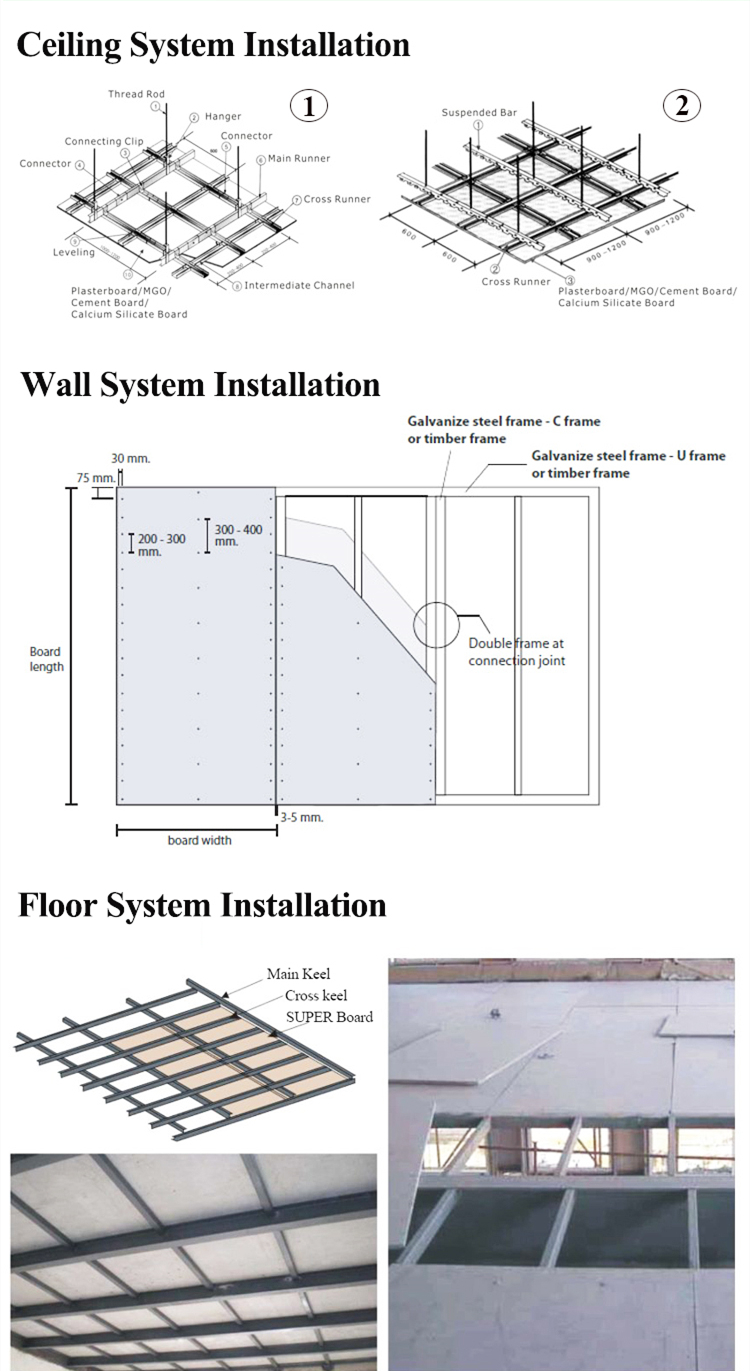

Partition Installing Method:
1. Galvanized Metal Frame
A.The top and bottom keels are fixed respectively top floor and on the floor with expansion bolts.
B.The vertical keel should be aligned well according to the requirement (generally being 612 mm) with a
2. Board Material Package Fixed
A. Cutting the board material to the dimensions needed (about 10mm lower than wall height)
B. Board material is fixed on keel in anchoring seam way with tapping screw: the interval of tapping screw is generally
C. The expansion seam of about 4mm between boards should be kept.
D.The shrouding should be fixed from the middle to the four sides and cannot be operated at multipoint simultaneously
to avoid generating inner stress to make board material bucking.
E. Before the board is packaged and fixed, depending on the needs, glass cotton or rock cotton can be filled.
Ceiling Installing Method:
1. Carry out ceiling line-measuring to determine the ceiling’s fixed position, the boom’s central range is generally 1200.
2. Connect and fix the boom and main keel with a hanging piece to make the main keel keep its level position.
3. Vertically fix the sub-keel to the main keel with a hanging piece; the sub-keel axis central range is 612mm.
4. Install the laterally supporting keel properly, its central range is 1224mm.
5. Fix the board on sub-keels with tapping screws, and to well the seam-connecting treatment.

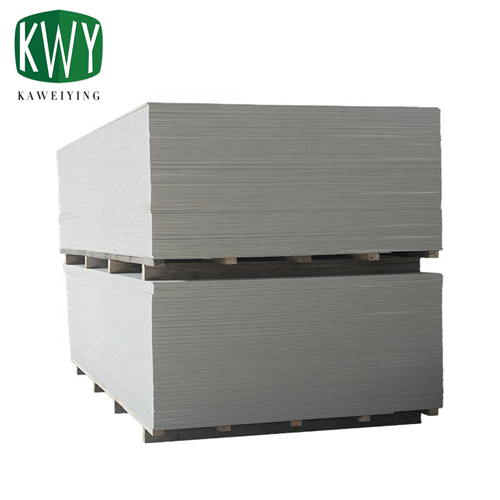

Packing&Shipping:
The hanging system of the board combined with a light steel keel is divided into two kinds of person-standing type
